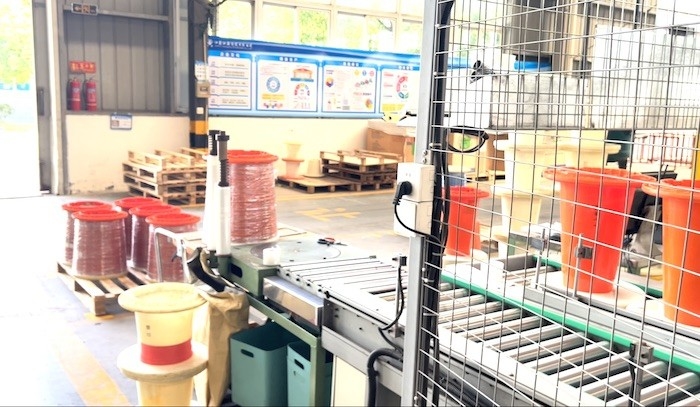

Automotive Wire High Speed Extrusion Production Line 1500m/min
Expert Engineering Support to Optimize Your Wire Extrusion Line
There are a lot of components to wire extrusion lines, but the most critical part is how well your supplier’s engineers can understand and help you achieve your objectives. we apply industry expertise to provide world-class wire and cable extrusion line engineering, fabrication, and installation across the country and around the globe. This includes designing custom wire coating systems, innovative tension control solutions, automated control and inspection – just about anything you can imagine.The automated production line is specially used for the manufacturing of wires and cables, which can realize the continuous insulation coating of metal conductors (copper/aluminum). The winding and packaging can be matched with KPS cone-shaped reel fully automatic wire taking-up machine, double-head coiling machine, double-reel semi-automatic wire taking-up machine, etc.
Application
The production line is suitable for single-color, single-color strip, double-color strip, and full-cover extrusion of thermoplastic insulation materials such as PVC, PP, PE, XLPE, and low-smoke halogen-free, meeting the German, Japanese, Korean, Italian and other series of automotive wire insulation extrusion.
Suitable conductor:0.22mm²--6mm²;
Finished outer diameter: φ1.2mm-φ5mm;
Line speed: KPS take-up Max1500m/min;
Double-head coiling machine: Max1000m/min;
Double-reel semi-automatic take-up: Max1000m/min;
Specification
| Screw specification (mm) | Φ50 | Φ70 | Φ80 | Φ90 | Φ100 | Φ120 | Φ150 |
| Maximum screw speed (rpm) | 120 | 120 | 110 | 90 | 80 | 70 | 60 |
| PVC glue output (kg/h) | 100 | 180 | 280 | 360 | 430 | 500 | 800 |
| PE glue output (kg/h) | 50 | 90 | 140 | 180 | 200 | 280 | 400 |
| PP glue output (kg/h) | 40 | 90 | 110 | 140 | - | - | - |
| Aspect ratio (L/D) | (24-26):1 | ||||||
| Drive power (kWAC) | 22 | 45 | 55 | 75 | 90 | 132 | 160 |
| Barrel temperature control area | 4 | 4 | 5 | 5 | 6 | 7 | 8 |
| Screw specification (mm) | φ35 | φ40 | φ50 | φ65 |
| Mechanical type | Reclining/horizontal |
Reclining/horizontal |
horizontal | horizontal |
| Maximum screw speed (rpm) | 60/120 | 60/120 | 120 | 110 |
| PVC glue output (kg/h) | 20/30 | 20/35 | 100 | 160 |
| PE glue output (kg/h) | 10/25 | 14/30 | 50 | 75 |
| PP glue output (kg/h) | 14/25 | 16/30 | 40 | 80 |
| Drive power (kW AC) | 5.5/11 | 5.5/15 | 22 | 45 |
| Barrel temperature control area | 3 | 3 | 4 | 4 |
