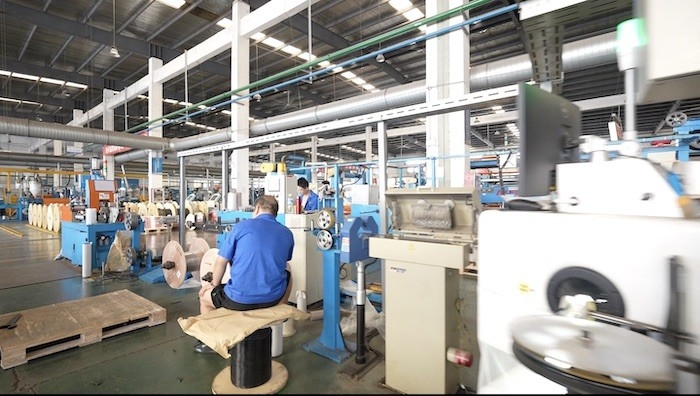

Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
The Wire Extrusion Line is a state-of-the-art production system designed for high-efficiency insulation and jacketing of conductors used in electrical and data transmission cables.
Engineered for precision, our extrusion line ensures consistent coating thickness and superior concentricity, guaranteeing optimal electrical performance.
From bare conductor to finished cable, the entire process is streamlined for maximum productivity and quality assurance.
PV Cable is a special connection cable in solar power generation system, used for series connection between components and power transmission from components to inverter. Its core value lies in:
Weather resistance: long-term exposure to ultraviolet (UV), high temperature (-40℃-120℃), humidity and chemical corrosion environment;
Safety: flame retardant, low smoke zero halogen (LSZH), reducing fire risks;
Electrical stability: low resistance design, reducing energy loss and improving system efficiency;
Applications:
Used for one-time extrusion of photovoltaic cable insulation and sheath, meeting the requirements of TUV and UL certification;
Main process parameters:
| Applicable conductor | φ1.8mm-φ7.0mm; |
| Finished outer diameter | φ3mm-φ10.0mm; |
| Maximum line speed | Max 250m/min; |
| Insulation/sheath material | LSOH/XLPE; |
| Extrusion capacity | 80mm auxiliary machine: 180kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1 |
| Extrusion capacity | 90mm main machine: 240kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1 |
