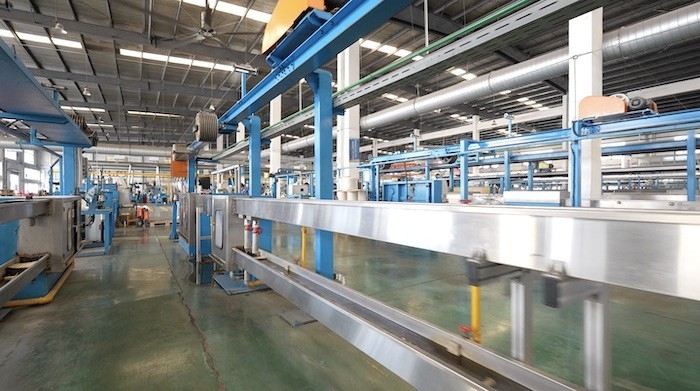

Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
Applications:
Used for one-time extrusion of photovoltaic cable insulation and sheath, meeting the requirements of TUV and UL certification;
PV Cable is a special connection cable in solar power generation system, used for series connection between components and power transmission from components to inverter. Its core value lies in:
Weather resistance: long-term exposure to ultraviolet (UV), high temperature (-40℃-120℃), humidity and chemical corrosion environment;
Safety: flame retardant, low smoke zero halogen (LSZH), reducing fire risks;
Electrical stability: low resistance design, reducing energy loss and improving system efficiency;
Main process parameters:
| Applicable conductor | φ1.8mm-φ7.0mm; |
| Finished outer diameter | φ3mm-φ10.0mm; |
| Maximum line speed | Max 250m/min; |
| Insulation/sheath material | LSOH/XLPE; |
| Extrusion capacity | 80mm auxiliary machine: 180kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1 |
| Extrusion capacity | 90mm main machine: 240kg/h (open head, low smoke halogen-free irradiation cross-linked material), screw L/D = 25:1 |
