| Brand Name: | Kunbo |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, D/P, D/A |

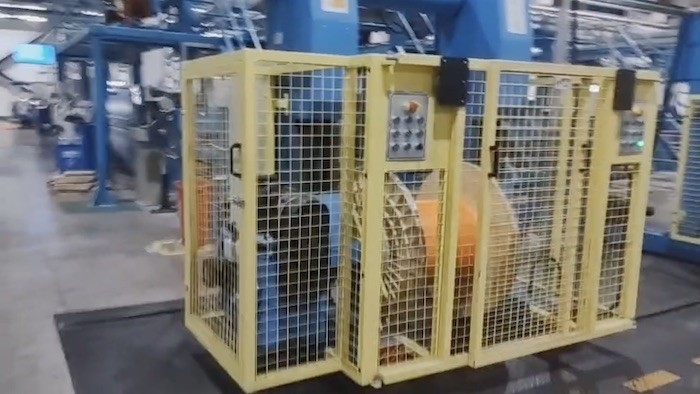

Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
We have achieved high acclamation in the industry for offering a top-of-the-line gamut of Cable Extrusion Line in the market. In order to meet the variegated needs of the customers, we manufacture wide range of extrusion machine in different specifications. Extensively used in stainless steel construction, our offered Cable Extrusion Line is well recognized in market for its features such as rugged design, unmatched performance and low maintenance cost.
Fundamental highlights
Linear and high yields all through a wide scope of velocities and weight
Hearty development
Generation adaptability over a substantial extent of utilization
New Energy Extrusion Production Line
EV cables (electric vehicle high-voltage cables) are the core "blood vessels" of electric vehicle energy transmission, responsible for safely and efficiently transmitting high-current electrical energy between high-voltage batteries, drive motors, power electronic equipment (such as inverters, DC-DC converters) and charging interfaces. Their design is fundamentally different from ordinary automotive low-voltage cables and must meet stringent electrical, mechanical and environmental requirements.
Applications
Suitable for extrusion of insulation/sheath of PVC, TPE, TPU, XLPO, etc.;
Main process parameters
Extrusion materials: PVC, TPE, TPU, XLPE;
Main machine specifications: φ80mm, φ90mm, φ120mm;
Applicable conductor core wire diameter: φ1.5mm-φ20mm;
Finished outer diameter: φ2.5mm-φ25mm;
Maximum line speed: Max 110m/min;
Adaptation parameters of each model:
| Screw specification (mm) | φ80 | φ90 | φ120 |
| Maximum screw speed (rpm) | 90 | 90 | 80 |
| PVC glue output (kg/h) | 280 | 360 | 500 |
| XLPE glue output (kg/h) | 150 | 180 | 250 |
| Aspect ratio (L/D) | 25/26:1 | ||
| Drive power (kWAC) | 75 | 90 | 160 |
| Barrel temperature control area | 5 | 5 | 6 |
