| Brand Name: | Kunbo |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, D/P, D/A |

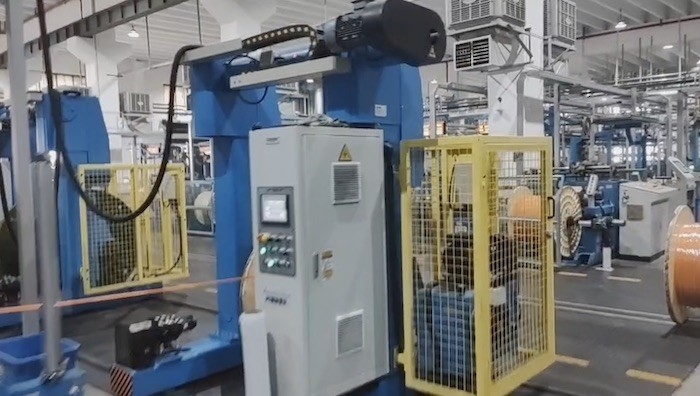

Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
Uninterrupted Performance
Our robust machinery ensures smooth, continuous operation with minimal downtime. Invest in reliability—invest in performance that lasts.
Smarter Extrusion with PLC Control
Experience intelligent manufacturing. Our line features PLC and touch-screen control for easy operation, real-time monitoring, and data logging.
Quality You Can Measure
Integrated with laser diameter gauges and spark testers, our system ensures each wire meets international standards for safety and performance.
EV cables (electric vehicle high-voltage cables) are the core "blood vessels" of electric vehicle energy transmission, responsible for safely and efficiently transmitting high-current electrical energy between high-voltage batteries, drive motors, power electronic equipment (such as inverters, DC-DC converters) and charging interfaces. Their design is fundamentally different from ordinary automotive low-voltage cables and must meet stringent electrical, mechanical and environmental requirements.
Applications
Suitable for extrusion of insulation/sheath of PVC, TPE, TPU, XLPO, etc.;
Main process parameters
Extrusion materials: PVC, TPE, TPU, XLPE;
Main machine specifications: φ80mm, φ90mm, φ120mm;
Applicable conductor core wire diameter: φ1.5mm-φ20mm;
Finished outer diameter: φ2.5mm-φ25mm;
Maximum line speed: Max 110m/min;
Adaptation parameters of each model:
| Screw specification (mm) | φ80 | φ90 | φ120 |
| Maximum screw speed (rpm) | 90 | 90 | 80 |
| PVC glue output (kg/h) | 280 | 360 | 500 |
| XLPE glue output (kg/h) | 150 | 180 | 250 |
| Aspect ratio (L/D) | 25/26:1 | ||
| Drive power (kWAC) | 75 | 90 | 160 |
| Barrel temperature control area | 5 | 5 | 6 |
