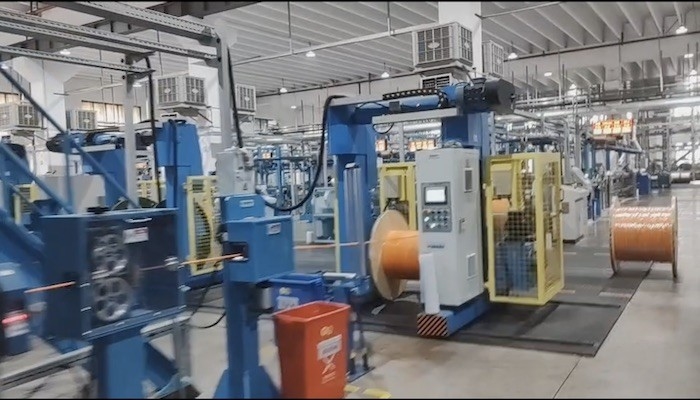

Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
extruders and cross heads for the processing of plastic or rubber compounds play an important part in the cable industry and can be seen as the heart of each cable extrusion line. With its long experience and excellence in extrusion we provide best process technology for all materials and applications in cable industry.
EV cables (electric vehicle high-voltage cables) are the core "blood vessels" of electric vehicle energy transmission, responsible for safely and efficiently transmitting high-current electrical energy between high-voltage batteries, drive motors, power electronic equipment (such as inverters, DC-DC converters) and charging interfaces. Their design is fundamentally different from ordinary automotive low-voltage cables and must meet stringent electrical, mechanical and environmental requirements.
Applications
Suitable for extrusion of insulation/sheath of PVC, TPE, TPU, XLPO, etc.;
Main process parameters
Extrusion materials: PVC, TPE, TPU, XLPE;
Main machine specifications: φ80mm, φ90mm, φ120mm;
Applicable conductor core wire diameter: φ1.5mm-φ20mm;
Finished outer diameter: φ2.5mm-φ25mm;
Maximum line speed: Max 110m/min;
Adaptation parameters of each model:
| Screw specification (mm) | φ80 | φ90 | φ120 |
| Maximum screw speed (rpm) | 90 | 90 | 80 |
| PVC glue output (kg/h) | 280 | 360 | 500 |
| XLPE glue output (kg/h) | 150 | 180 | 250 |
| Aspect ratio (L/D) | 25/26:1 | ||
| Drive power (kWAC) | 75 | 90 | 160 |
| Barrel temperature control area | 5 | 5 | 6 |
