| Brand Name: | Kunbo |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, D/P, D/A |

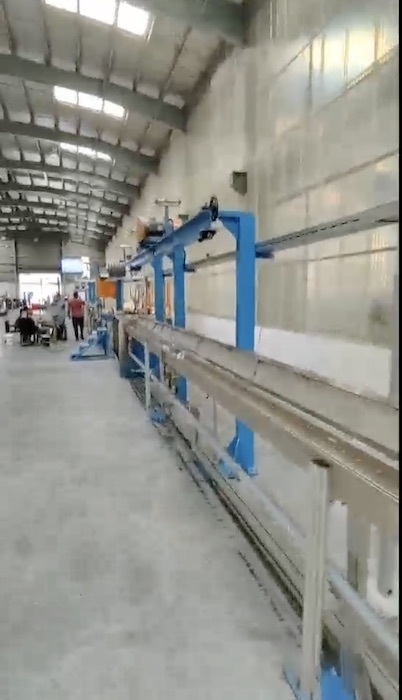

Pvc+Nylon Wire String Extrusion One-Step Extrusion Production Line
Nylon sheathed cables are widely used as construction cables in North America. They can also be used for aircraft low-voltage lines, line installation of highway monitoring equipment, dedicated lines for highway inductors, lighting fixture wiring, and highway high-pole lamp lines.
Applications:
Applicable to one-time extrusion of inner layer (with color strip) + outer nylon sheath
Main process parameters:
| Extrusion materials | PVC, XLPE, PA6, PA66, etc |
| Inner layer main machine specifications | φ50mm, φ70mm, φ90mm |
| Inner layer auxiliary machine specifications | φ35mm, φ50mm |
| Outer layer nylon main machine specifications | φ35mm, φ50mm, φ70mm |
| Applicable conductor core wire diameterφ | 1.0mm-φ6.0m |
| Finished outer diameter | φ1.5mm-φ7.0mm |
| Maximum line speed: | Max 300m/min |
