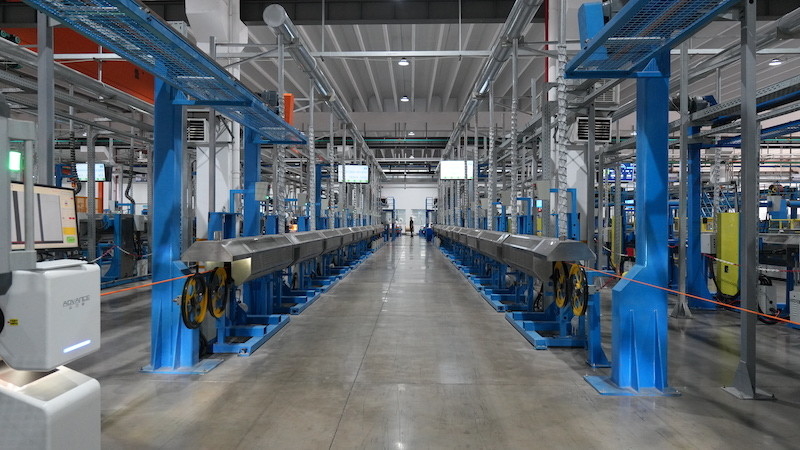

Silicone Wire Insulation/Sheath Extrusion Line 80m/min

Silicone Wire Insulation/Sheath Extrusion Line 80m/min

Production Line Consists
Pay off, main cabinet, fixed trough, movable trough, accumulator, traction device, take-up, spark tester.

Optional Parts
Active pay off, pre-heater, power machine, diameter-testing laser gauge, LSZH screw, single and dual bobbin take-up, coiling and wrapping machine.

Features
The extrusion machine can achieve a concentricity of the finished wire products of more than 90% with high precision. All of this is possible with the user-friendly interface and automated operation.

Silicone rubber cable has the characteristics of high temperature resistance, cold resistance, acid and alkali resistance and corrosive gas resistance, waterproof, etc. The cable structure is soft, radiation is convenient, the electrical performance is stable in high cold/high temperature (-60℃ - 180℃) environment, the anti-aging performance is outstanding, and the service life is long. It is widely used in metallurgy, power, petrochemical, electronics, automobile manufacturing and other industries.

Application

Mainly used for the extrusion production of various high-temperature silicone wires and cables and silicone pipes;

Features

Adopt KB 2.0 intelligent control system + Siemens IPC3000 + 19-inch industrial control screen + S7-1200PLC + a full set of online detection instruments to realize automatic control of the production process (wire diameter), conductor preheating, head vacuuming, three-stage infrared heating rapid shaping, uniformity of post-air heating and automatic lifting of the vulcanization furnace are process means to ensure process quality, avoiding the occurrence of pores in the extrusion of silicone rubber cables, lack of sulfur during startup and shutdown, and other phenomena that affect quality. The perfect process formula management is a strong guarantee for your product consistency and standardized production management, reducing dependence on people to a minimum.

Specification
