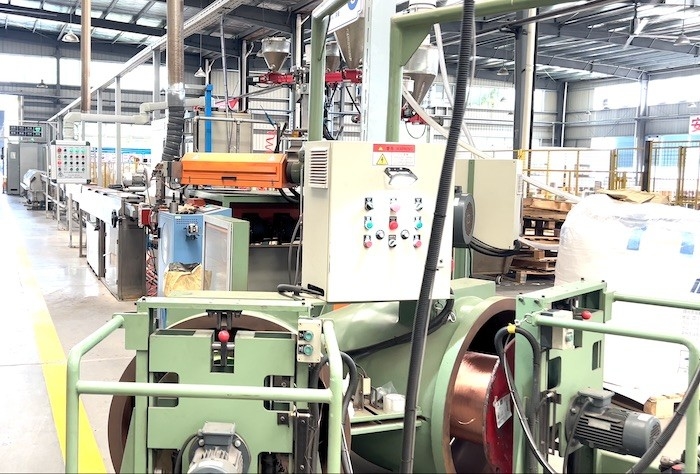

Automotive Wire High Speed Extrusion Production Line 1500m/min
The automated production line is specially used for the manufacturing of wires and cables, which can realize the continuous insulation coating of metal conductors (copper/aluminum). The winding and packaging can be matched with KPS cone-shaped reel fully automatic wire taking-up machine, double-head coiling machine, double-reel semi-automatic wire taking-up machine, etc.
Application
The production line is suitable for single-color, single-color strip, double-color strip, and full-cover extrusion of thermoplastic insulation materials such as PVC, PP, PE, XLPE, and low-smoke halogen-free, meeting the German, Japanese, Korean, Italian and other series of automotive wire insulation extrusion.
Suitable conductor:0.22mm²--6mm²;
Finished outer diameter: φ1.2mm-φ5mm;
Line speed: KPS take-up Max1500m/min;
Double-head coiling machine: Max1000m/min;
Double-reel semi-automatic take-up: Max1000m/min;
Specification
| Screw specification (mm) | Φ50 | Φ70 | Φ80 | Φ90 | Φ100 | Φ120 | Φ150 |
| Maximum screw speed (rpm) | 120 | 120 | 110 | 90 | 80 | 70 | 60 |
| PVC glue output (kg/h) | 100 | 180 | 280 | 360 | 430 | 500 | 800 |
| PE glue output (kg/h) | 50 | 90 | 140 | 180 | 200 | 280 | 400 |
| PP glue output (kg/h) | 40 | 90 | 110 | 140 | - | - | - |
| Aspect ratio (L/D) | (24-26):1 | ||||||
| Drive power (kWAC) | 22 | 45 | 55 | 75 | 90 | 132 | 160 |
| Barrel temperature control area | 4 | 4 | 5 | 5 | 6 | 7 | 8 |
| Screw specification (mm) | φ35 | φ40 | φ50 | φ65 |
| Mechanical type | Reclining/horizontal |
Reclining/horizontal |
horizontal | horizontal |
| Maximum screw speed (rpm) | 60/120 | 60/120 | 120 | 110 |
| PVC glue output (kg/h) | 20/30 | 20/35 | 100 | 160 |
| PE glue output (kg/h) | 10/25 | 14/30 | 50 | 75 |
| PP glue output (kg/h) | 14/25 | 16/30 | 40 | 80 |
| Drive power (kW AC) | 5.5/11 | 5.5/15 | 22 | 45 |
| Barrel temperature control area | 3 | 3 | 4 | 4 |
