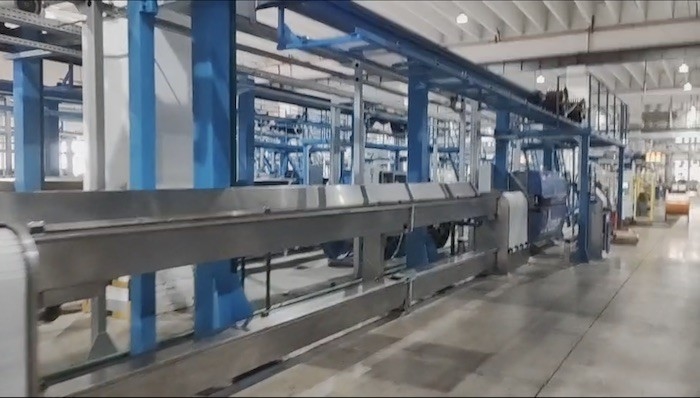

Photovoltaic Wire String Extrusion One-Step Extrusion Production Line 200m/min
Our extrusion lines support a wide range of conductor sizes, insulation thicknesses, and production speeds to suit diverse cable applications.
Whether you manufacture power cables, fiber optic buffer tubes, LAN cables, or automotive wires, our system offers unmatched versatility.
Equipped with automatic control systems and PLC integration, the line supports user-friendly operation and digital diagnostics.
EV cables (electric vehicle high-voltage cables) are the core "blood vessels" of electric vehicle energy transmission, responsible for safely and efficiently transmitting high-current electrical energy between high-voltage batteries, drive motors, power electronic equipment (such as inverters, DC-DC converters) and charging interfaces. Their design is fundamentally different from ordinary automotive low-voltage cables and must meet stringent electrical, mechanical and environmental requirements.
Applications
Suitable for extrusion of insulation/sheath of PVC, TPE, TPU, XLPO, etc.;
Main process parameters
Extrusion materials: PVC, TPE, TPU, XLPE;
Main machine specifications: φ80mm, φ90mm, φ120mm;
Applicable conductor core wire diameter: φ1.5mm-φ20mm;
Finished outer diameter: φ2.5mm-φ25mm;
Maximum line speed: Max 110m/min;
Adaptation parameters of each model:
| Screw specification (mm) | φ80 | φ90 | φ120 |
| Maximum screw speed (rpm) | 90 | 90 | 80 |
| PVC glue output (kg/h) | 280 | 360 | 500 |
| XLPE glue output (kg/h) | 150 | 180 | 250 |
| Aspect ratio (L/D) | 25/26:1 | ||
| Drive power (kWAC) | 75 | 90 | 160 |
| Barrel temperature control area | 5 | 5 | 6 |
