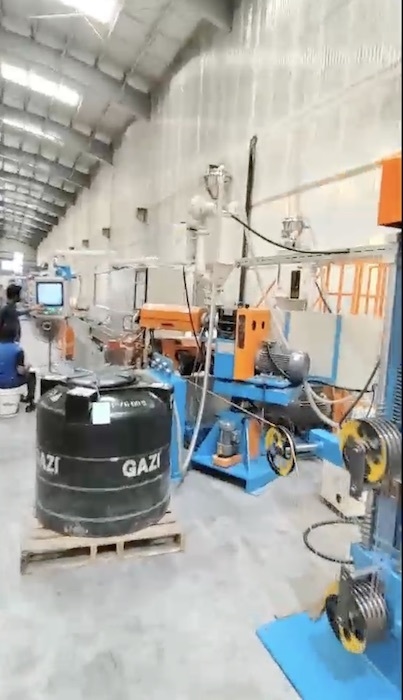

Pvc+Nylon Wire String Extrusion One-Step Extrusion Production Line
we have proven solutions for the production of PVC/PA insulated cores to various standards such as THHN (Thermoplastic High Heat-resistant Nylon coated), THWN, AWN and MTW. These extrusion lines are prepared for continuous operations and speeds up to 1,200 m/min. we recommend the classical tandem configuration to apply the insulation materials. The universal line design also allows the production of classical building wires and control cables with top performance and quality.
Nylon sheathed cables are widely used as construction cables in North America. They can also be used for aircraft low-voltage lines, line installation of highway monitoring equipment, dedicated lines for highway inductors, lighting fixture wiring, and highway high-pole lamp lines.
Applications:
Applicable to one-time extrusion of inner layer (with color strip) + outer nylon sheath
Main process parameters:
| Extrusion materials | PVC, XLPE, PA6, PA66, etc |
| Inner layer main machine specifications | φ50mm, φ70mm, φ90mm |
| Inner layer auxiliary machine specifications | φ35mm, φ50mm |
| Outer layer nylon main machine specifications | φ35mm, φ50mm, φ70mm |
| Applicable conductor core wire diameterφ | 1.0mm-φ6.0m |
| Finished outer diameter | φ1.5mm-φ7.0mm |
| Maximum line speed: | Max 300m/min |
